Oписание продукта

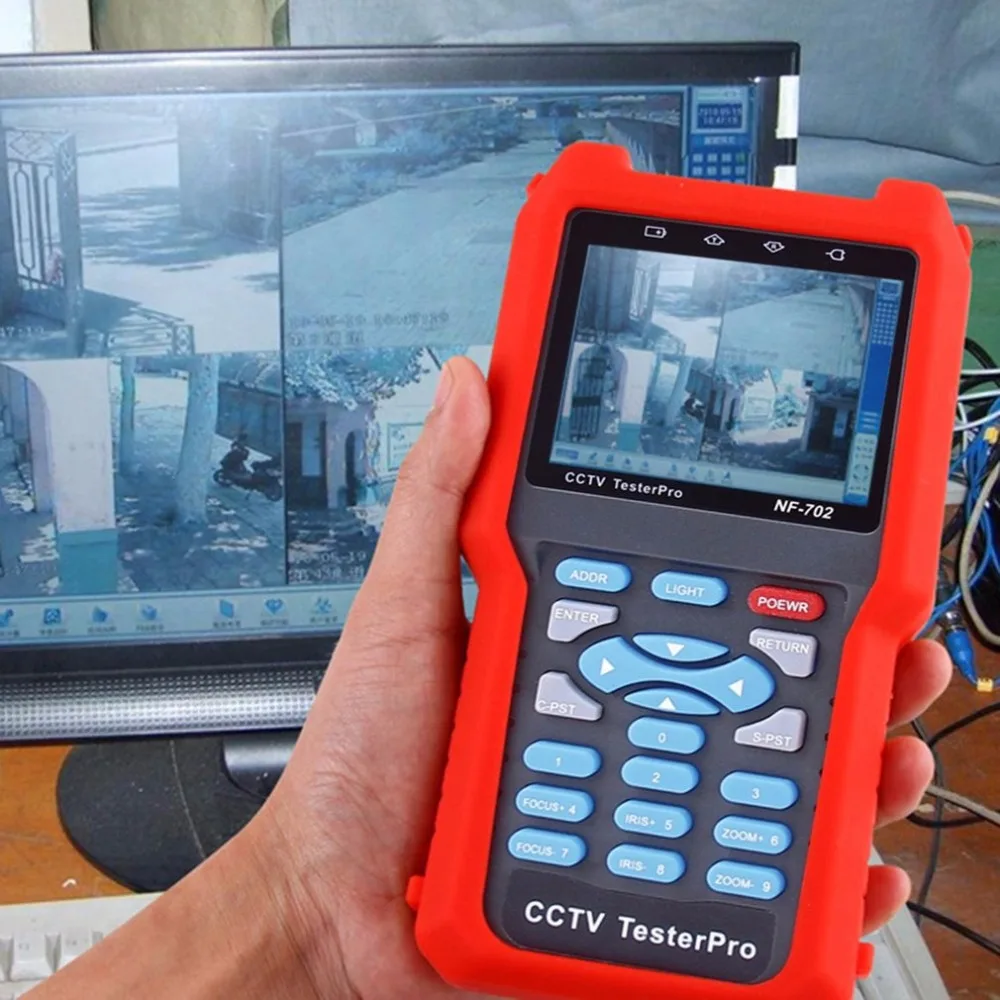

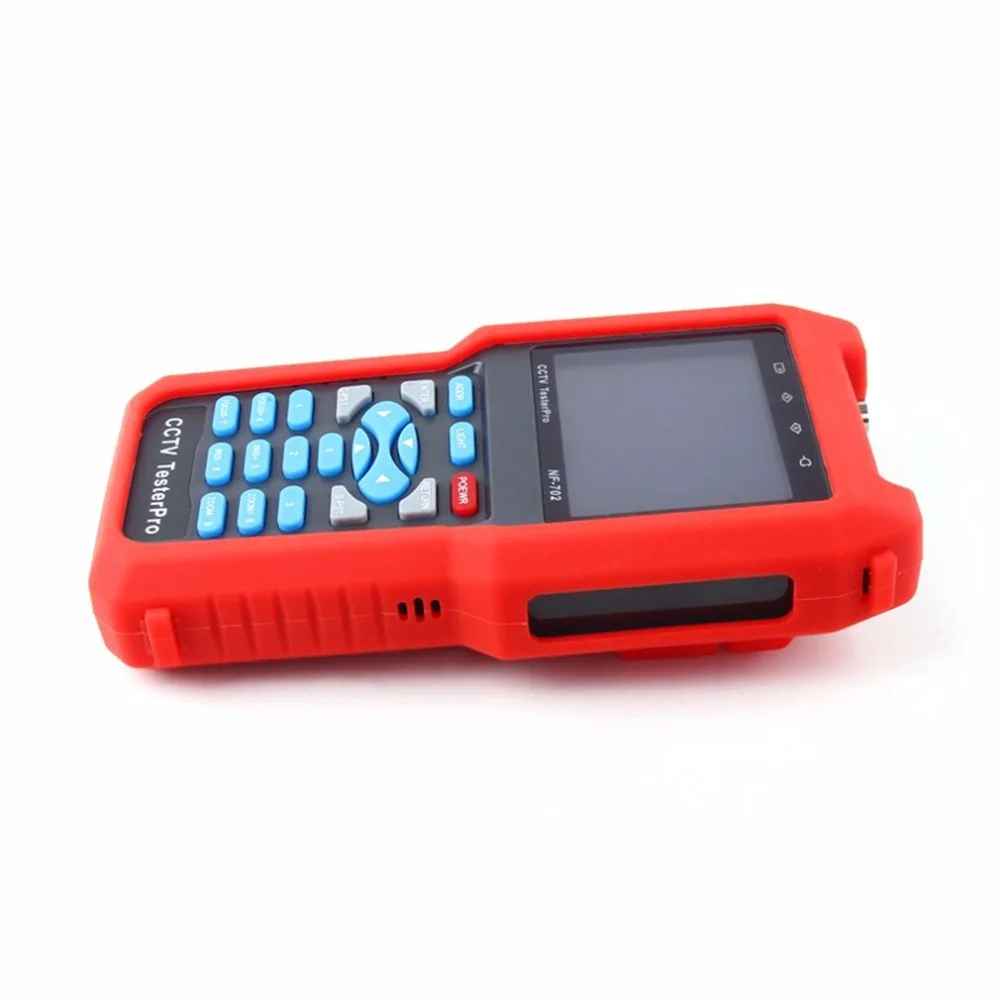

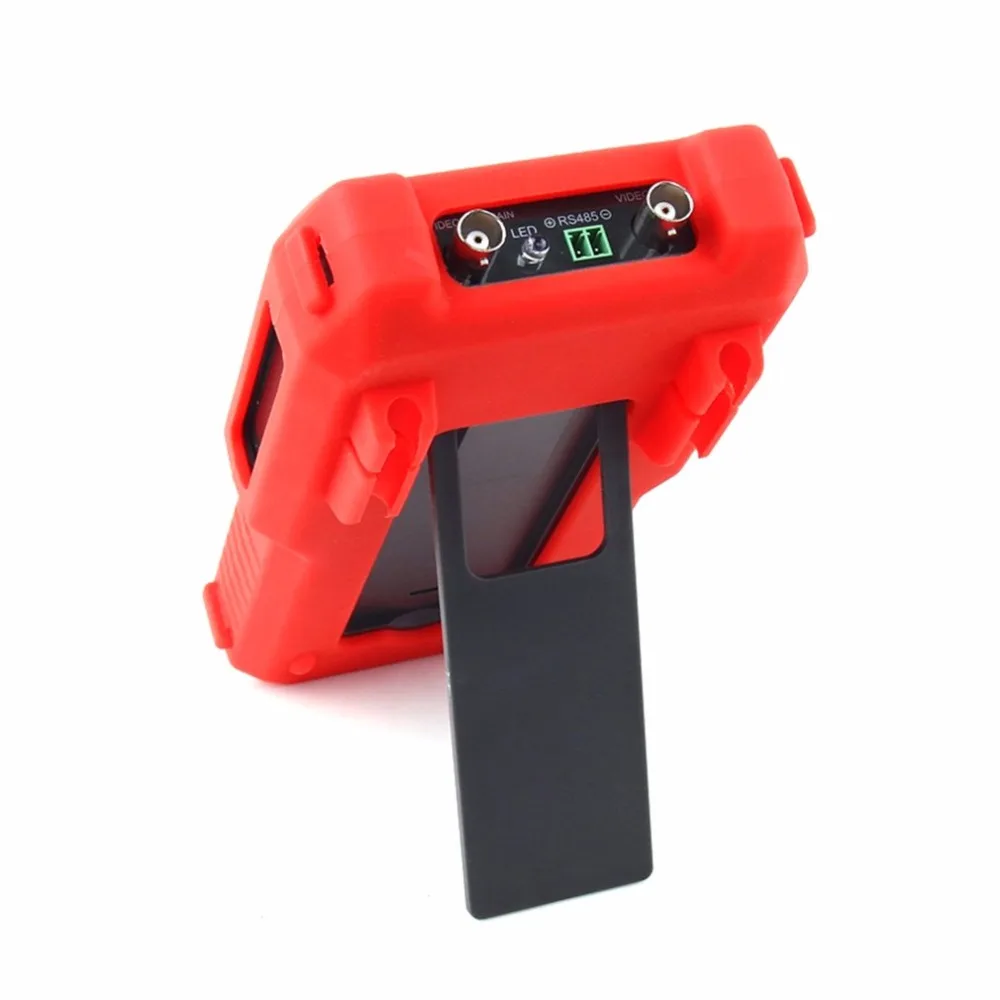

NOYAFA NF-702 Multi-function LCD CCTV Tester Line Finder Wire Tracker Diagnose Tone Tool Kit LAN Network Cable Tester



Video Level testing, video signals measured in IRE or Mv.
Audio input testing and PTZ continuing rotate test.
Digital multimeter, voltage, current, resistance and capacitance can be tested, continuity testing, diode testing.
PTZ control, Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and calls the preset position.
Video displaying, Automatically adapts and displays the video format of NTSC/PAL.
Video Generating, The PAL/NTSC multi-system color bar video generator
Check open, short, cross reverse wiremap for RJ45 and BNC cable.
LCD Screen: 3.5" LCD Screen 960(H)×240(V)resolution
Audio signal input: Microphone or other audio devices
Color bar: White, blue, purple, green, yellow, black, red
Baud Rates: 2400,4800,9600
Vedio format: NTSC/PAL
Vedio output: CVBS/ Analog signal
Language: Chinese/English
Power: DC5V/1A
Battery: 3.7V Li-battery(not included)
Working time: 18hs for continous working
Model: NF-702
Material: plastic and metal

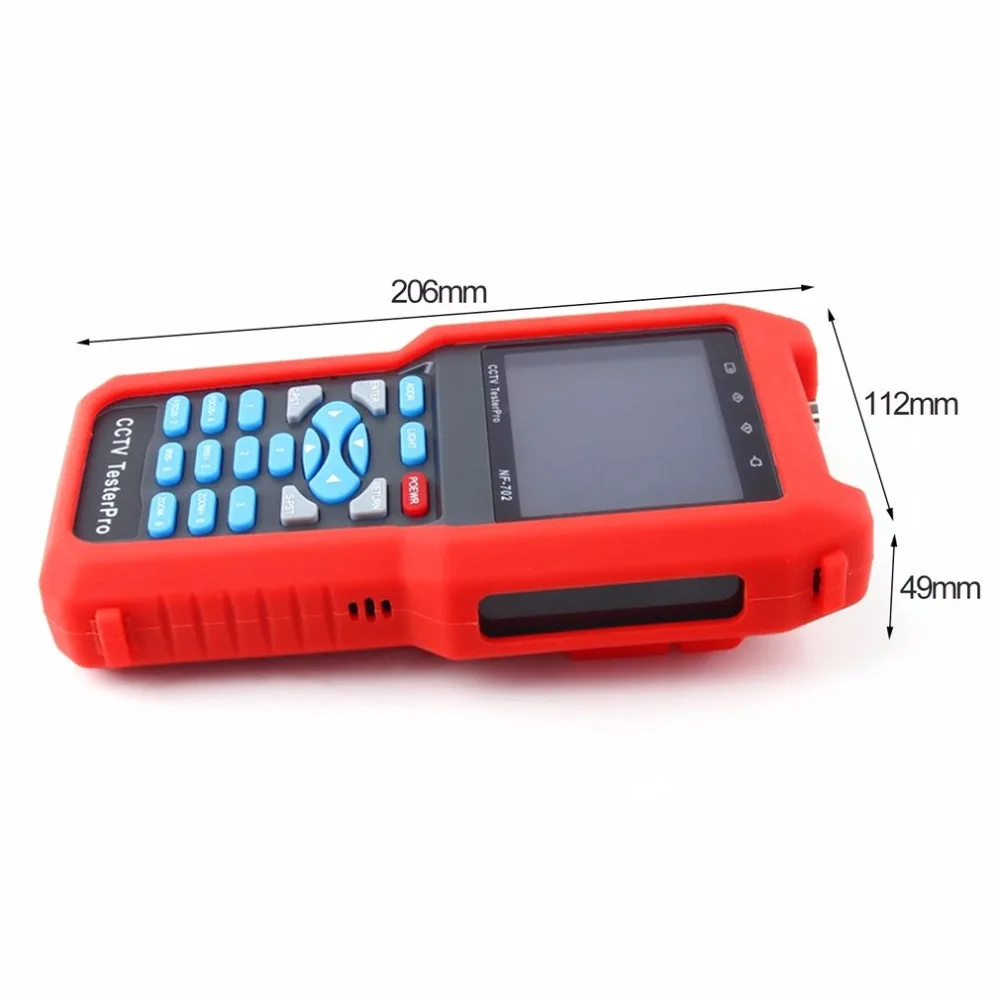

Tester size: 206*112*49mm
Remote size: 107*30*24 mm
Package size: 260*200*80mm
Color: red & black
Package included:
1 x LCD Tester
1 x Remote
1 x Power Supply
1 x BNC Cable
1 x Audio Cable
1 x RS485 data cable
1 x Camera Power cable
1 x User Manual
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3cm deviation.Thanks!
