Oписание продукта

Free Shipping: We will ship it by express (DHL or Fedex or EMS or UPS)

32 Bit AlexMos Firmware 3 Axis Brushless gimbal controller:

The original alexmos Russian firmware, can be directly to upgrade the firmware on its website.

Official authorized official version,Can be permanently upgraded.

32 Bit AlexMos Controller + 3 Axis DSLR Brushless Gimbal Handle Cam + Motor





Description:

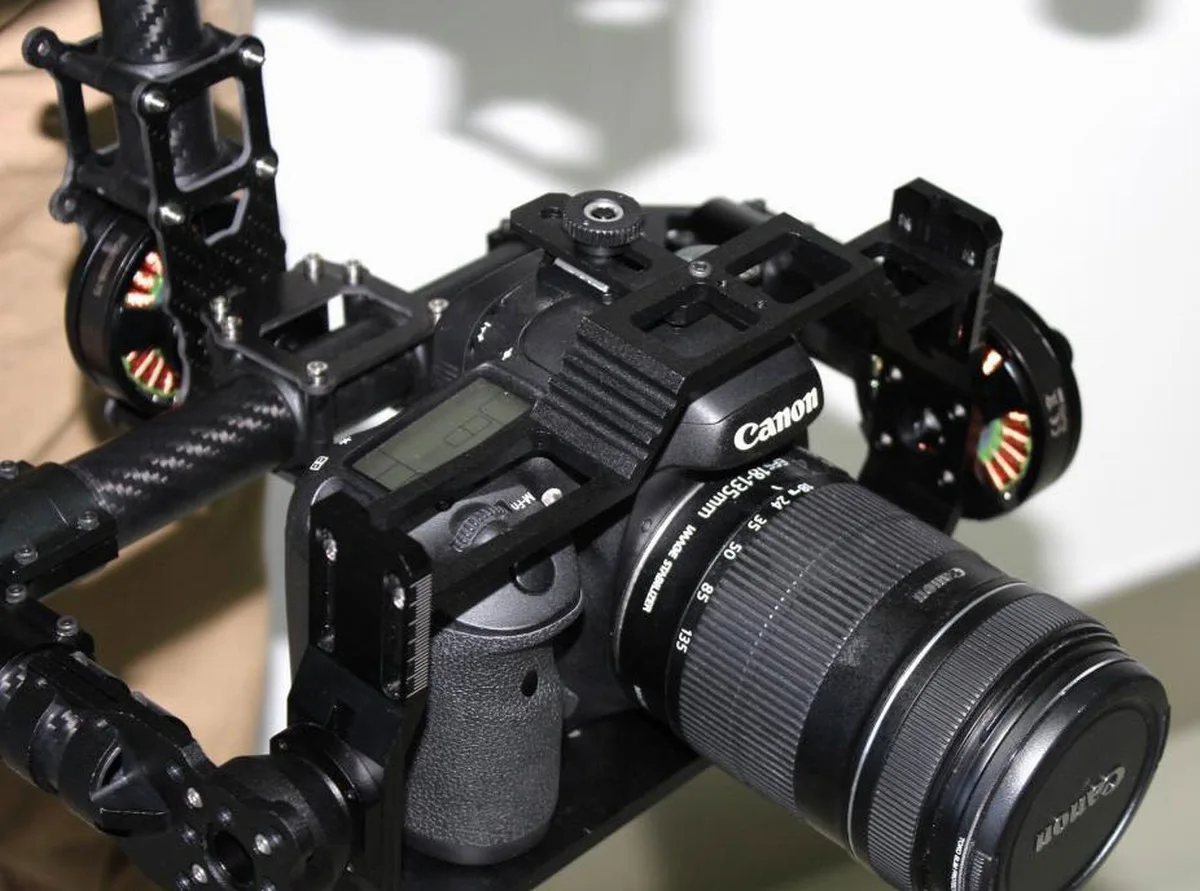

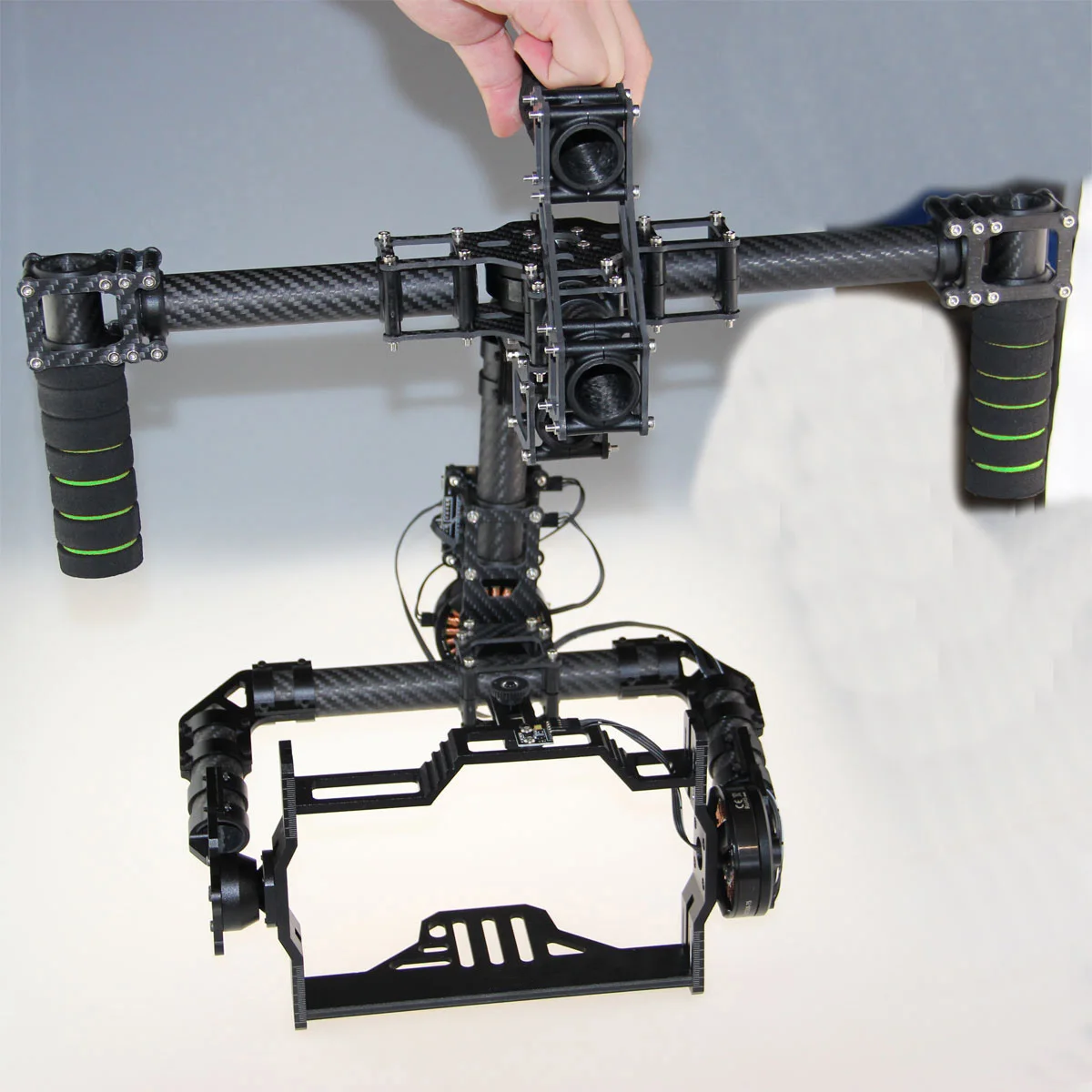

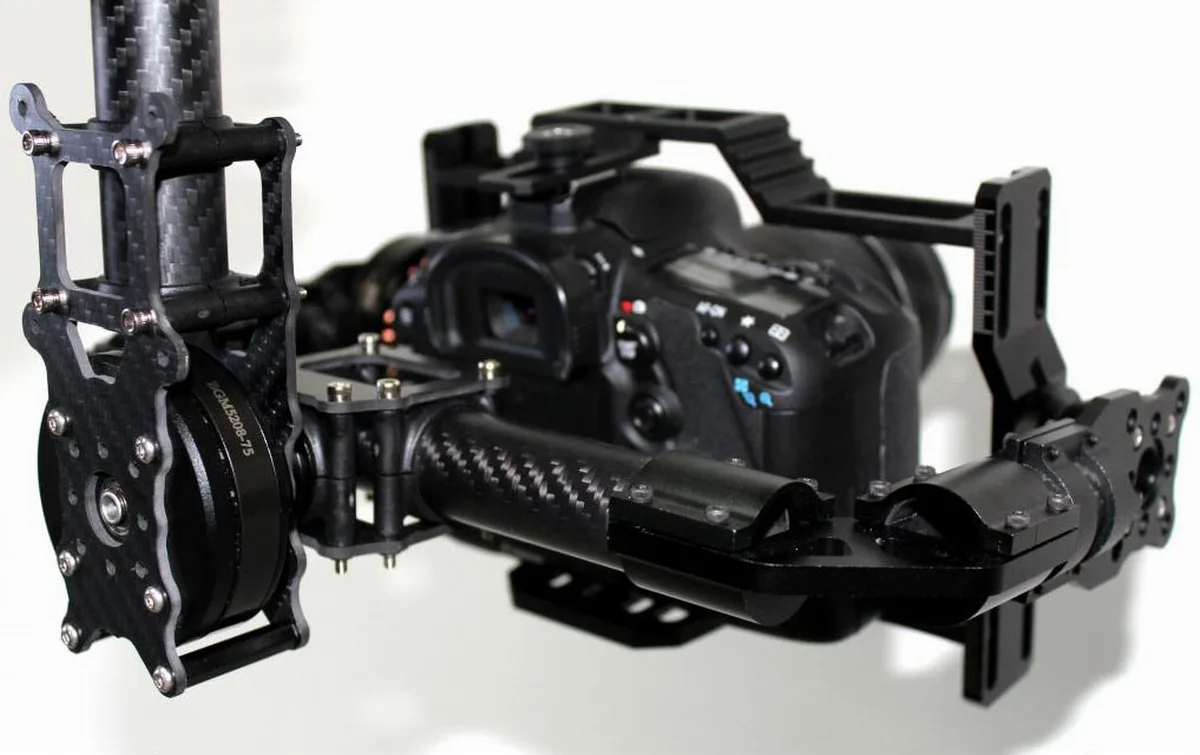

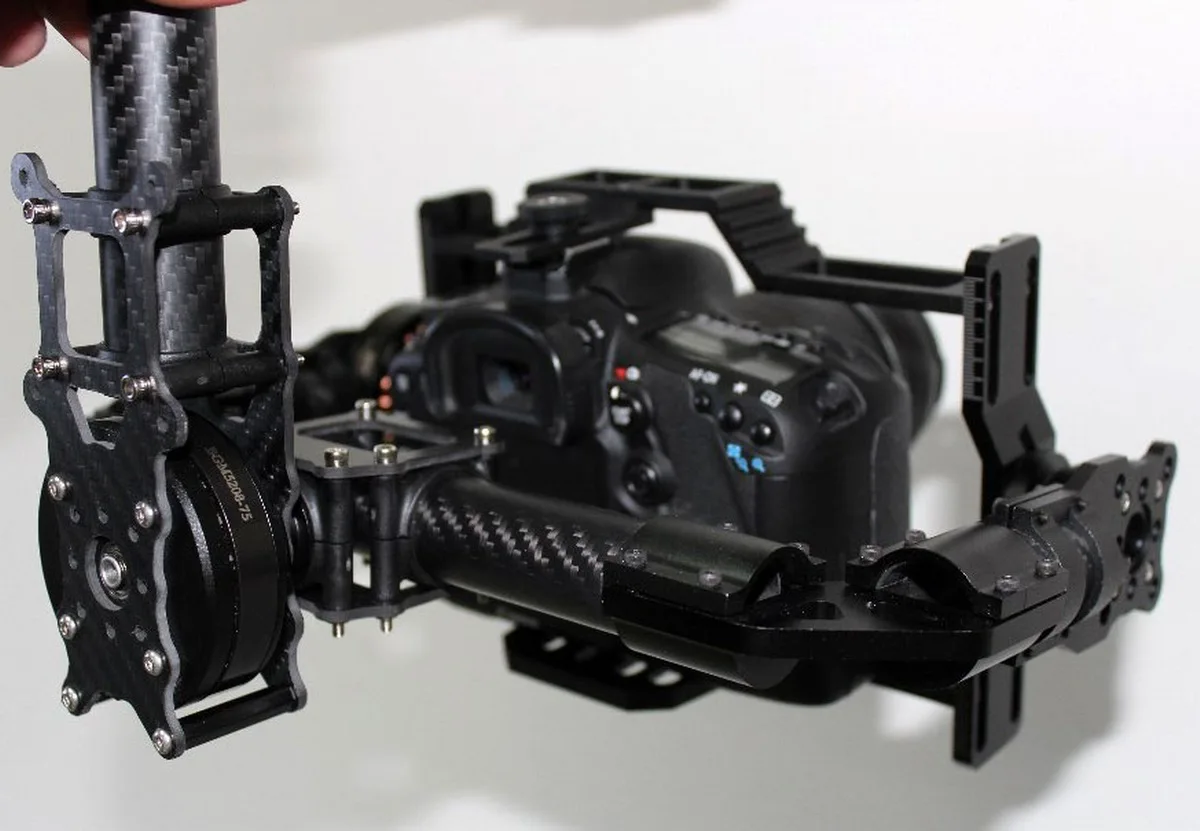

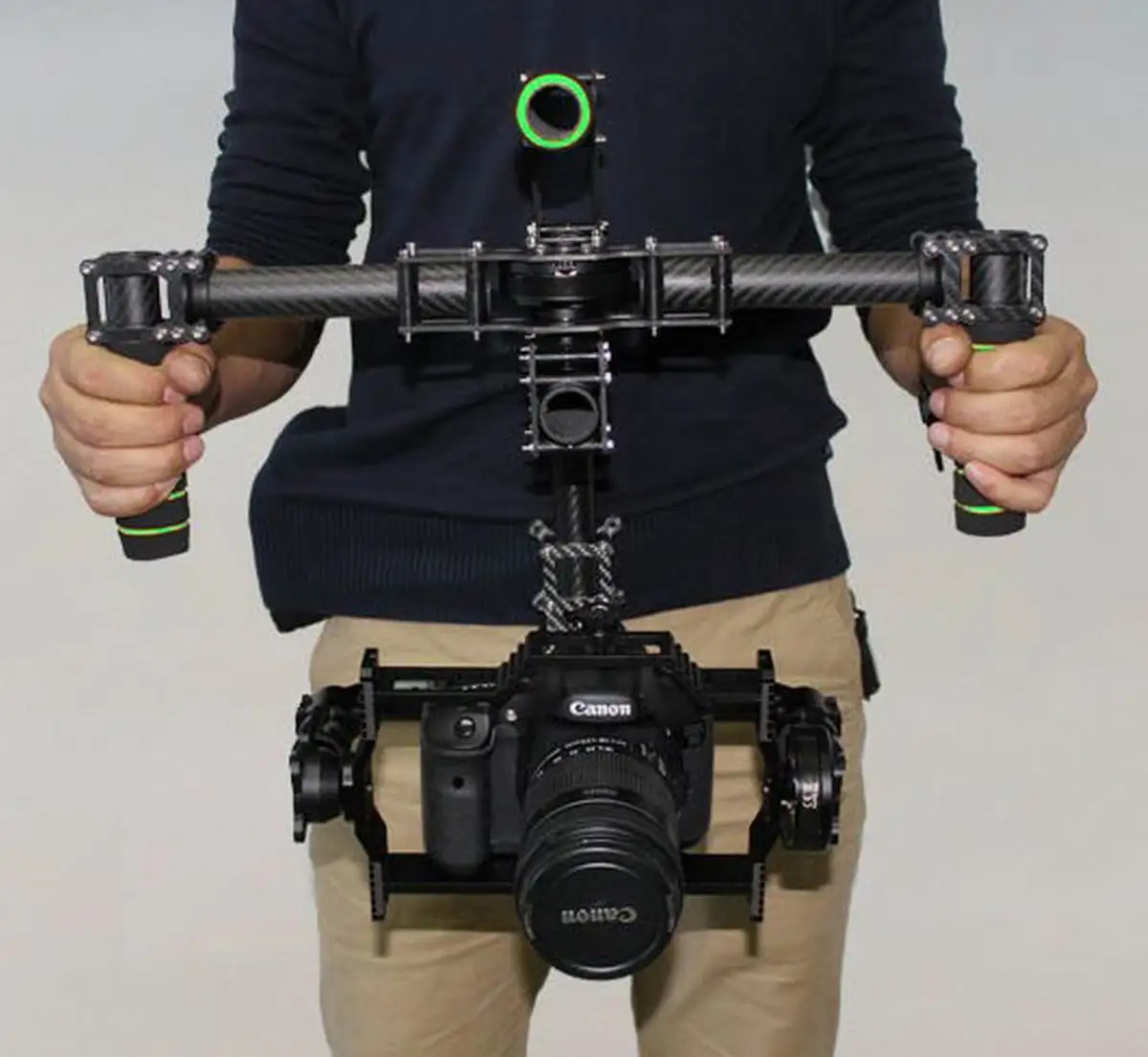

This Eagle Eye DSLR 3-axis handheld brushless gimbal is developed and produced on the basis of Gopro and micro DSLR, working with official Alexmos brushless controller, this gimbal can obtain extremely great image quality.

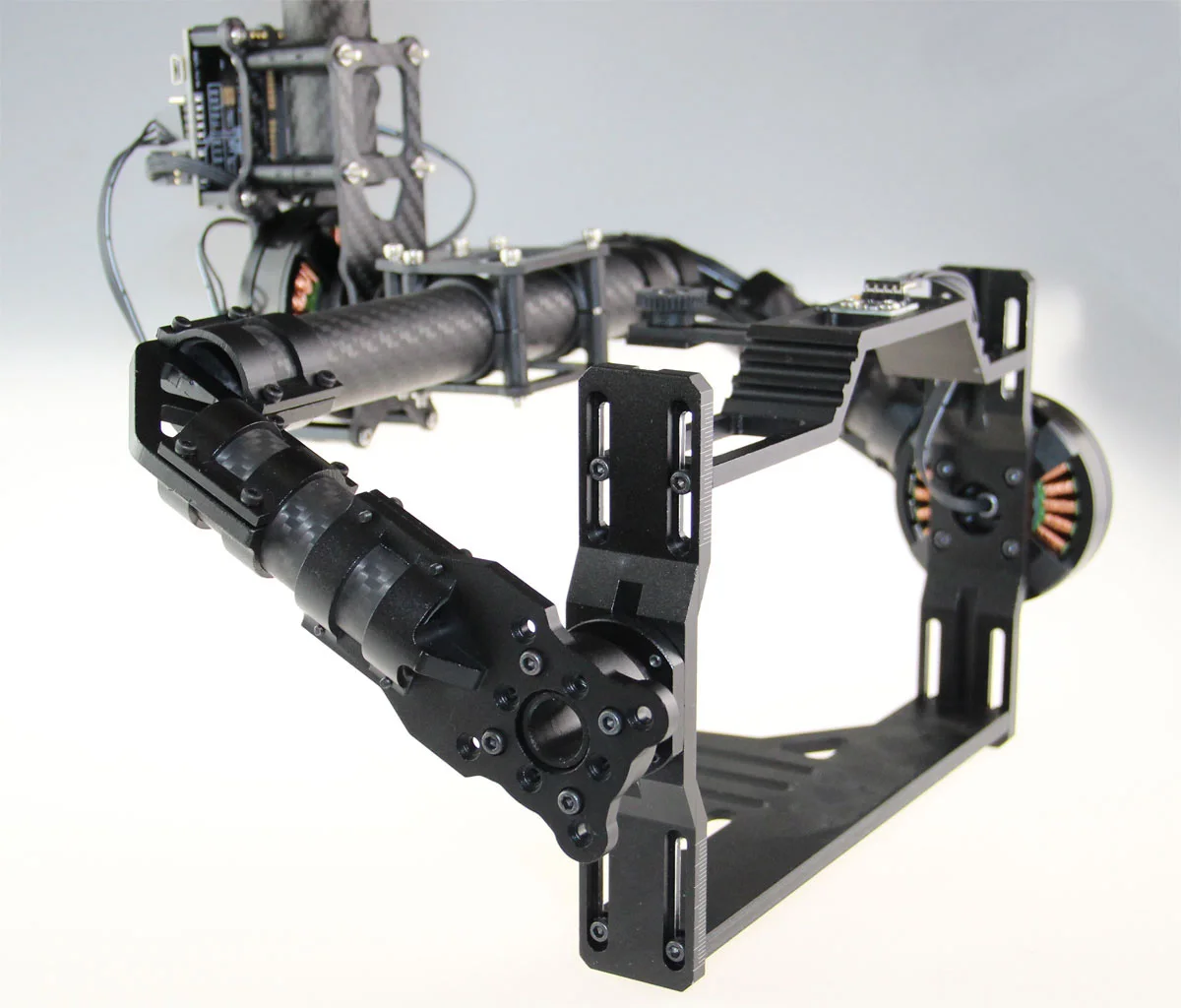

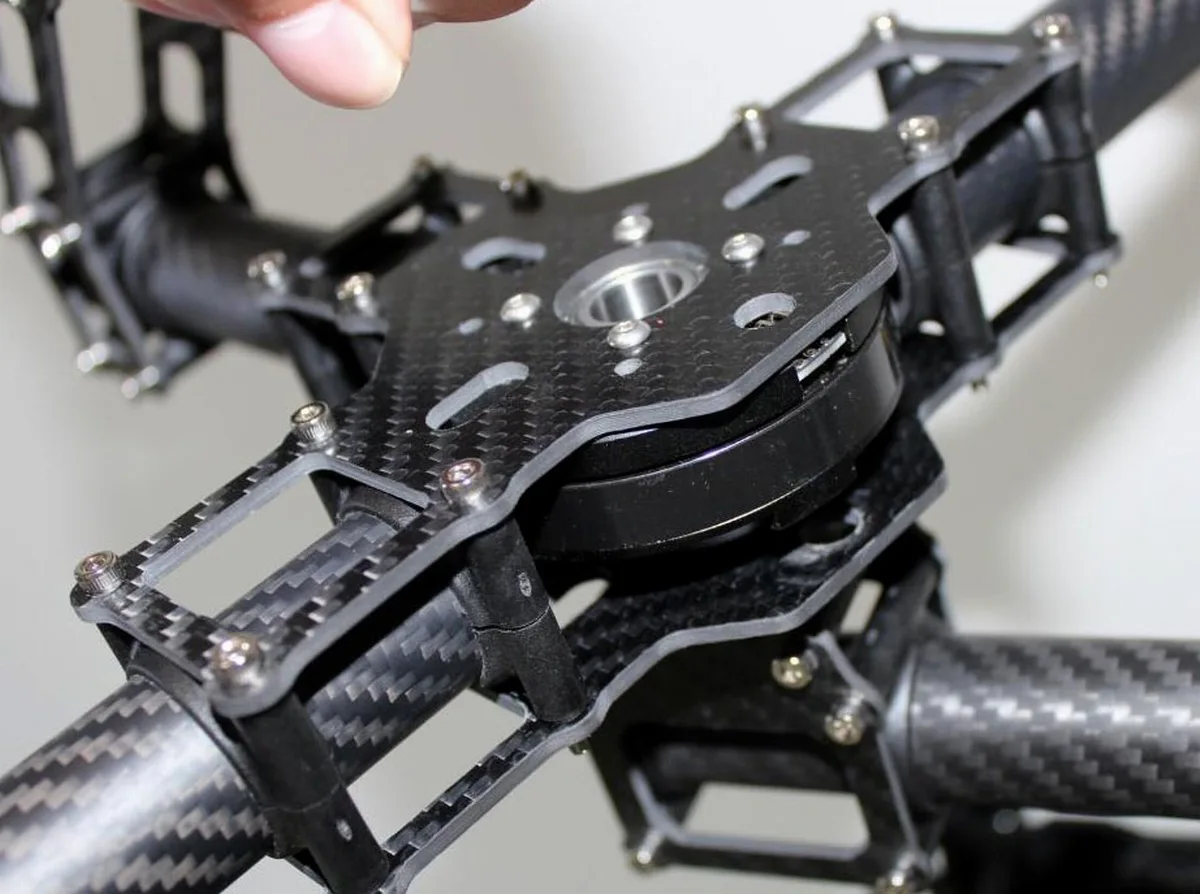

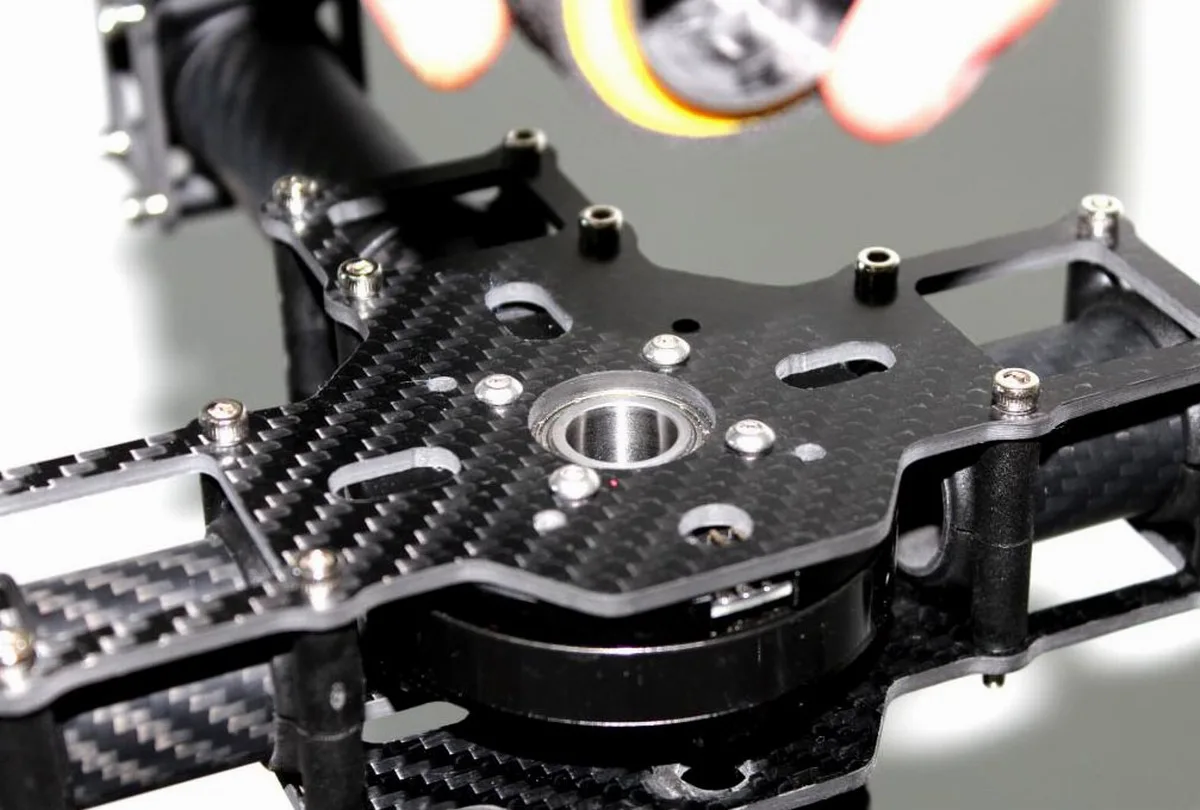

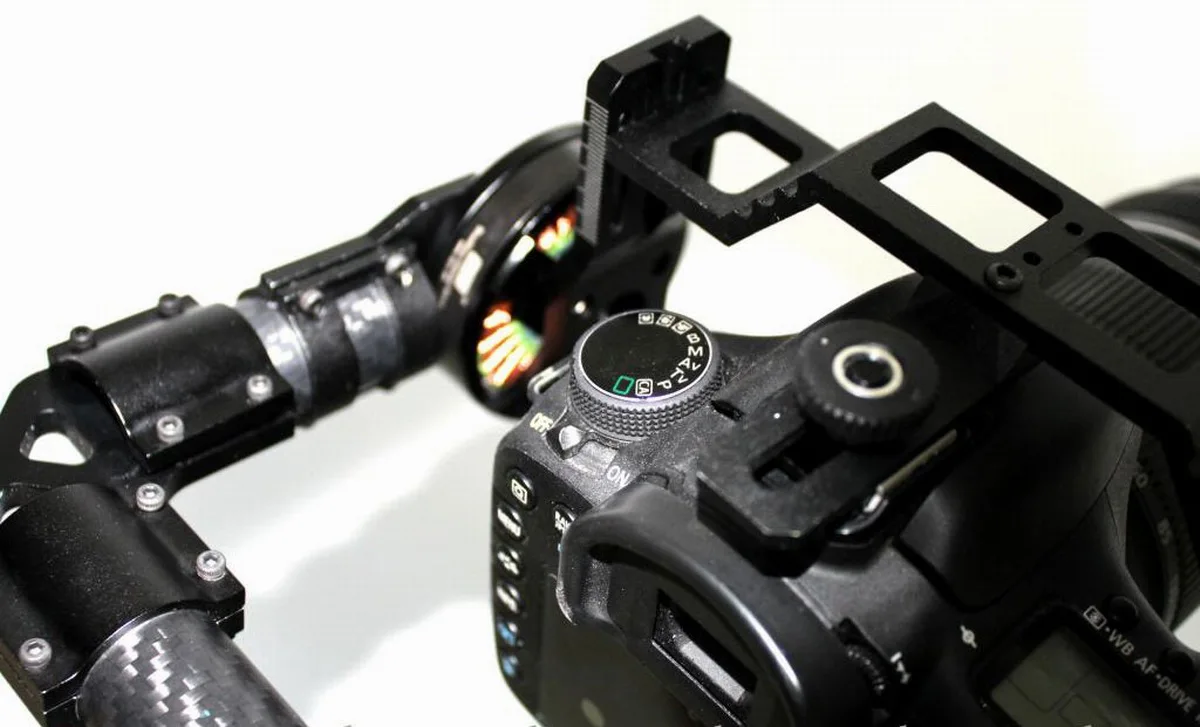

This gimbal adopts dual-arm support, camera hot shoe locking structure and was made of 3K pure carbon plate, pipe and CNC7050 aviation aluminum material, having advantages of high strength, light weight, etc. Working with 3pcs high power 5208 hollow shaft motor, it can accomplish 360 degrees stable rotation. Besides there is a slip ring position reserved for pitch and yaw axis to upgrade to the structure which could support unlimited rotation in 360 degrees.

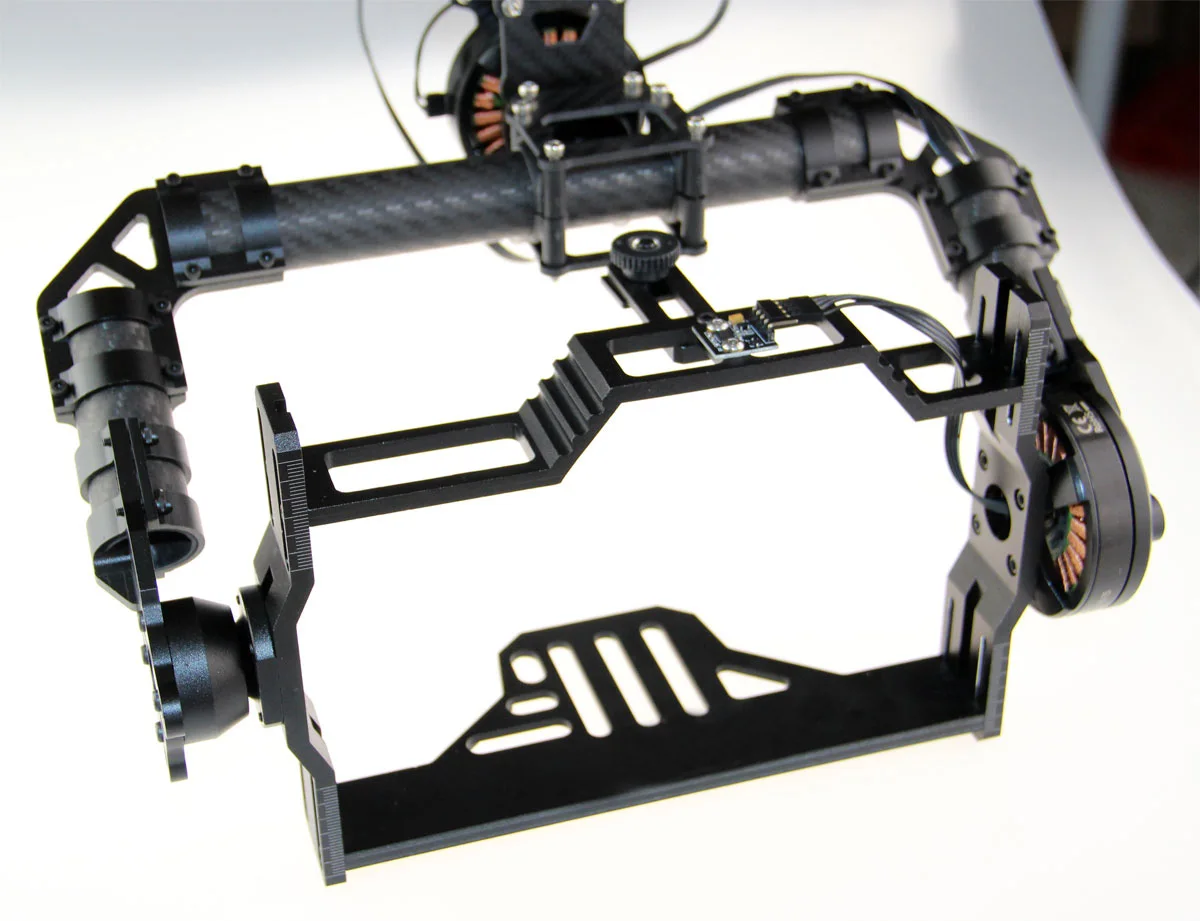

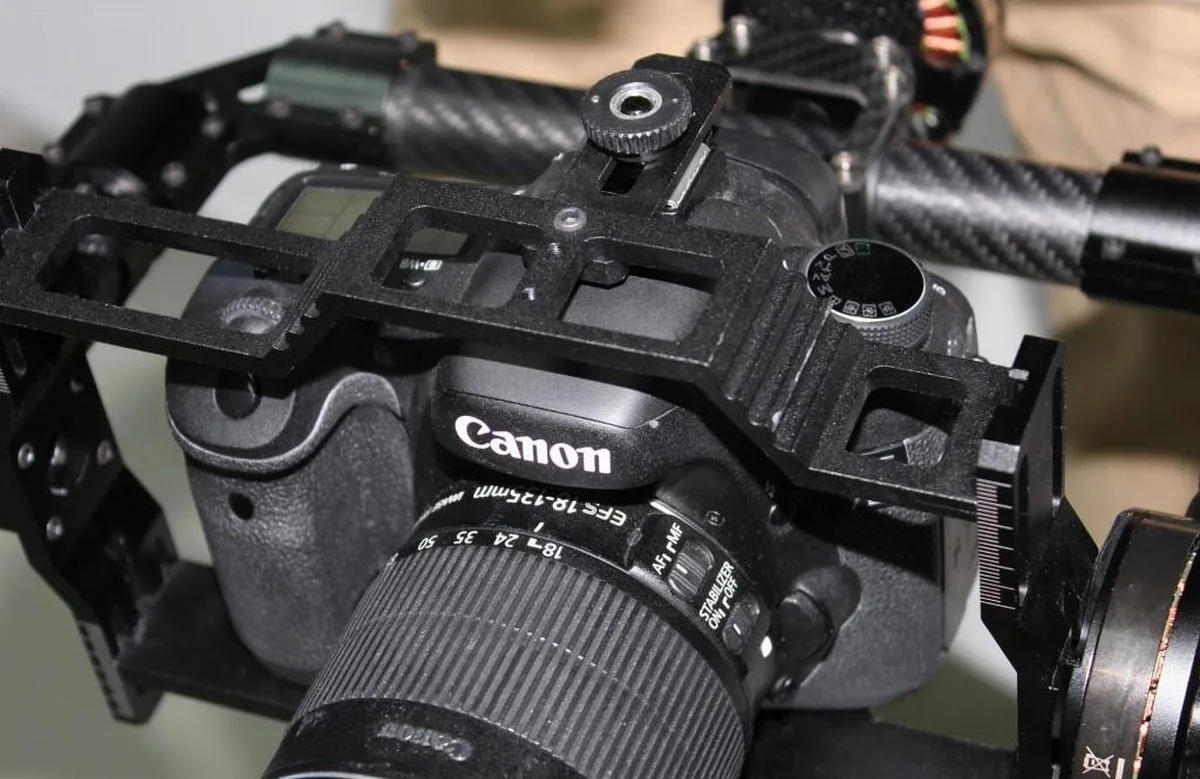

The C.G of this gimbal is adjustable, and there is scale display on the camera frame, which makes the gimbal be easy to adjust and use.
Features:
Material: Made of aluminum alloy and pure 3k carbon fiber
25MM Dia Carbon tube
New design for the camera plate
Loading Weight: 1.8kg around
Radio Control: Support tilt, roll, yaw, direction lock and switch
Weight: about 1650g (include motor, controller, wires)
Support Cameras:
Canon 5D Mark II/5D Mark III, 7D
Sony 900
Nikon D900/D800E/D700/D800

* DSLR BL Handled Gimbal with 3 axis AlexMos controller, including one BGM5208-200T, two BGM5208-75 motor

* Material: Made of aluminum alloy and real carbon fiber.

*. Total Weight of whole gimbal: 1790g

*. Loading Weight: About 1.8kg

*. For DSLR camera(such as: CANON 5D MarkII/5D Mark III,7D,SONY α900, NIKON D900/D800E/D700/D800 etc .1


Support the use of arms, camera hot shoe locking structure, the use of pure carbon fiber 3K, tubes and one CNC7075 aviation aluminumcomposition, with high structural strength, light weight and easy to carry advantages. 5208 hollow shaft with three high-power motor, three-axis 360 degree rotation to achieve stability augmentation, and set aside hole slip ring installed in the pitch axis and select the axis for future upgrades slip ring structure, to achieve unlimited continuous rotation.
Overall PTZ axis adjustable focus, the camera frame with adjustment scale display, debugging is simple, easy to use. The unique design ofthe connector pipe within easy walking lines, wiring and more fresh, simple, elegant.

Basic parameters:
Operating voltage :2-4s lithium battery (8-14v) / suggestions DC 12v
Maximum operating current: 4A
Remote control: pitch support
Roll Support
Rotating support
Follow lock switch support


About 32Bit 3 axis controller:
The controller can be used for building high-quality 3-axis camera stabilizing systems which can be mounted to UAV and for building handheld camera stabilizers.
This version of the controller is our new direction in the development of the stabilizing solutions. It will replace the previous 8-bit version of the SimpleBGC controller, keeping 100% back-compatibility, but adding the new fuctionality.
Basic functions of the controller:
32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axis stabilization.
Allows camera control with the RC or analog joystick.
Use several switchable profiles for different modes of operation
Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
Battery voltage monitoring, compensating voltage drop in the PID-regulator.
Low battery alarm (output to 5V active buzzer).
Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
Can supply up to 1A current for external devices on the 5V power line.
Dedicated UART-socket to connect optional Bluetooth module
Reverse-polarity protection, overheat and overcurrent protection
USB interface for the PC connection, to configure, control and upgrade firmware.
Graphical user interface to manage the settings. Windows / OS X / Linux versions.
Control through the Serial-protocol using dedicated API.
Improved attitude estimation algorythms
Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and will make stable work in any frame position.
Specifications:
Size of the board: 50×50 mm
Distance between the mounting holes: 45 mm
Diameter of the mounting holes: 3 mm
Power supply voltage: 8–25 V (3s-5s LiPo)
Maximum motor current: 1,5 A
5V output current to power external devices: up to 1 A
Offical website: basecamelectronics.com/simplebgc32bit/

Packaging:

* 100% brand new
* Eagle Eye 3-axis Handheld Brushless Gimbal Frame x 1
* BGM5208-200T Brushless Motor x 1
* BGM5208-75 Brushless Motor x 1
* 32Bit AlexMos 3 Axis Gimbal Controller x 1
*. Joystick Controller x1
