Automatic Electric Portable Water Pump Dispenser Gallon Drinking Bottle Switch Built in Rechargeable Battery

Automatic Electric Portable Water Pump Dispenser Gallon Drinking Bottle Switch Built in Rechargeable Battery
  • Продавецleafexpose.us
  • Список ценUS $25.49piece
  • Продажная ценаUS $25.49piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (158)

Oписание продукта








This machine we have 1 year warranty



and we have CE certificate.

GFK-160 Digital liquid filling machine

5ml-3500ml

Ask for the manual and operation video when needed!!!!



     GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so tthat the machine can fill the liquid fluently and at high accuracy.It is widely used in medical,chemistry,food,bervage,oil and cosmetics,etc.It is suitable for filling low-viscous liquid without pellets.



Automatic counting function, effectively control filling quantity
Import single-chip microcomputer control, high efficiency, low power consumption
LCD display, touch screen is very easy to operate
Filling Accuracy is high, precise volume
Wide Voltage range
Working performance is stable and can be used for long time
Self-suck function, don\\\'t need to pour
 The pump can stand for PH value within 5-8
Anti-dripping design
Reasonable design, made of stainless steel, meet GMP requirement
Speed Parameter Range: 1-9, Filling Time Range: 0.01-99.99s, Interval time Range: 0.01-99.99s
Save up to 6 sets of parameters for different-sized bottles and can choose from easily
Widely used in medical, chemistry, food, beverage, oil, and cosmetics, etc.
Suitable for filling low-viscous liquid without pellets
The pump can stand oil, heat, weak acid, weak alkali, abrasion and chemical products
Integrates the advantage of self-suck pump and chemical pump
Self suck, heat protect, stable working and continuous idle or load operate for long time

Voltage:AC110V-140V/180V-260V
Power:30W
Max Flow Rate:3.2L/min
Max Suck Distance:2m
Repeat Error:<0.5%
Package Dimension:400×380×200(mm)
Machine Weight:5.5kg / 12.1Lbs
Filling Volume Range:5ml-3500ml
Anti-dripping Function:Available
Memory Function without Electricity:Available
Machine Size:350 X 270 X 150(mm)
Diameter of Filling Nozzle:Φ 8mm
Suitable Soft Tube:17#(interior diameter: 6.4mm, thickness: 1.6mm, max pressure0.24Mp)
Note:Different liquid needs to choose different material of tube. The tube provided by us is silicone tube.

Updated Model GFK-160 5ML-3500ML Digital Control Pump Liquid Filling Machine

This Updated GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy. Separated with the electric motor,the pump is made of a variety of anti-corrosion imported material. There is no mechanical metal part or abrasion inside the pump.
This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. The machine has a self-prime pump that can suck in the liquid from your container and then output via the nozzle. It can be used to fill many different types of clear thin liquid,including water, olive oil, fuel, drinks, vinegar, milk etc.

Liquid suitable: low viscous liquid like water, wine, solutions etc.

Liquid unsuitable: very thick liquid (sauce,detergent etc), or liquid containing small particles.
The tubes are made of silicone gel and the pump head is made of PVC plastic material so it can endure mild acid/alkaline solutions. The machine has a control front panel and digital display. You can easily enter your parameters by pressing the buttons on the control panel and the parameters will show in the LCD screen. The filling volume can be controlled via the filling time and speed parameters which give you much flexibility.

How to use
1. Installation

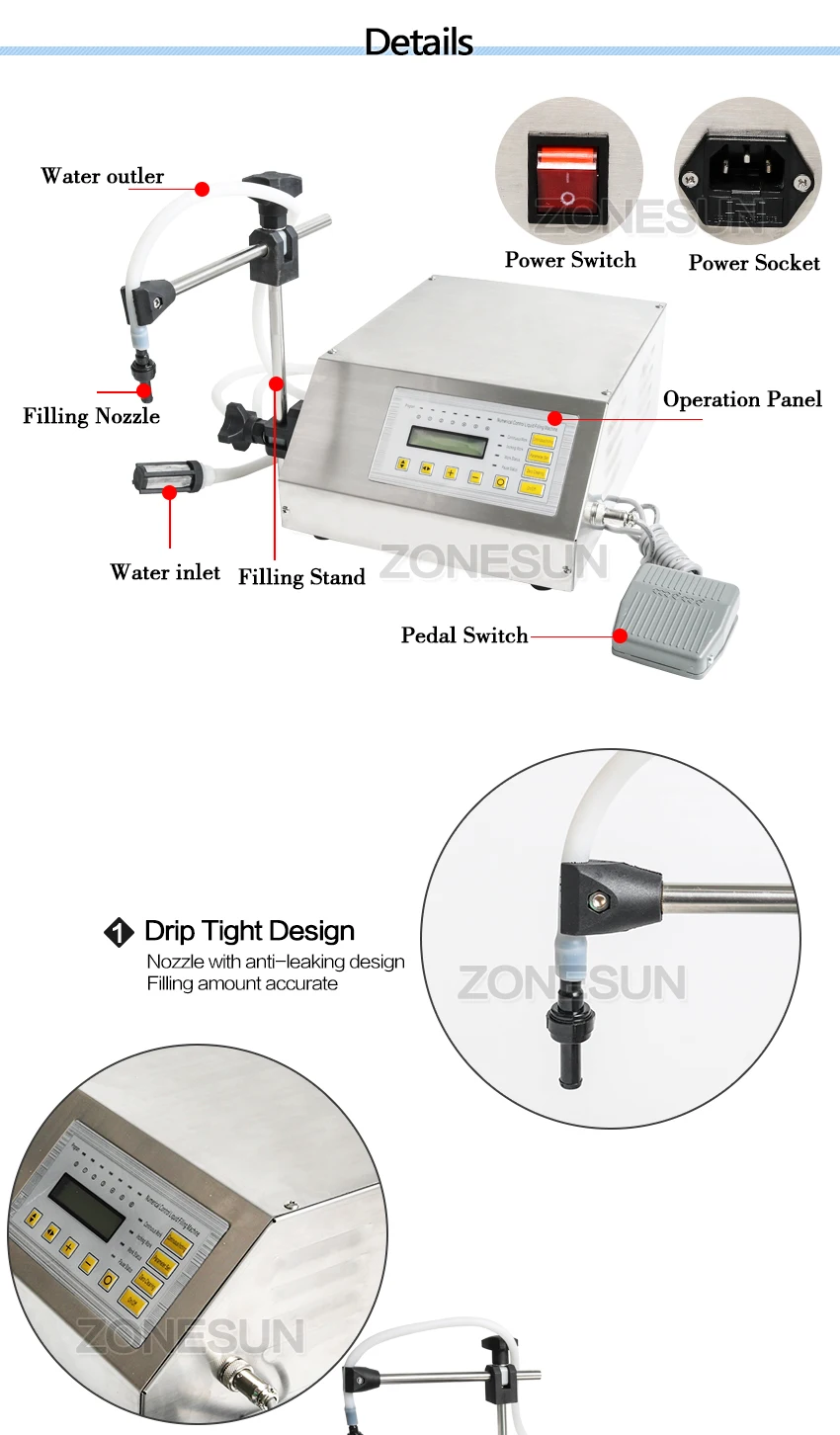

Take the plastic filling nozzle out and install it in the feeding tube. (Notice the triangle head connects the discharge tube). Take out the filling-head stand and install it on the left of the machines as photo3 shows. Put the filling head in the clip and tighten it by socket wrench.

Connect the pedal switch with machine, and put the tube with filter below the liquid level inside the storage rank. The position of tank should be lower than the machine. Start to test the machine after all is ready.

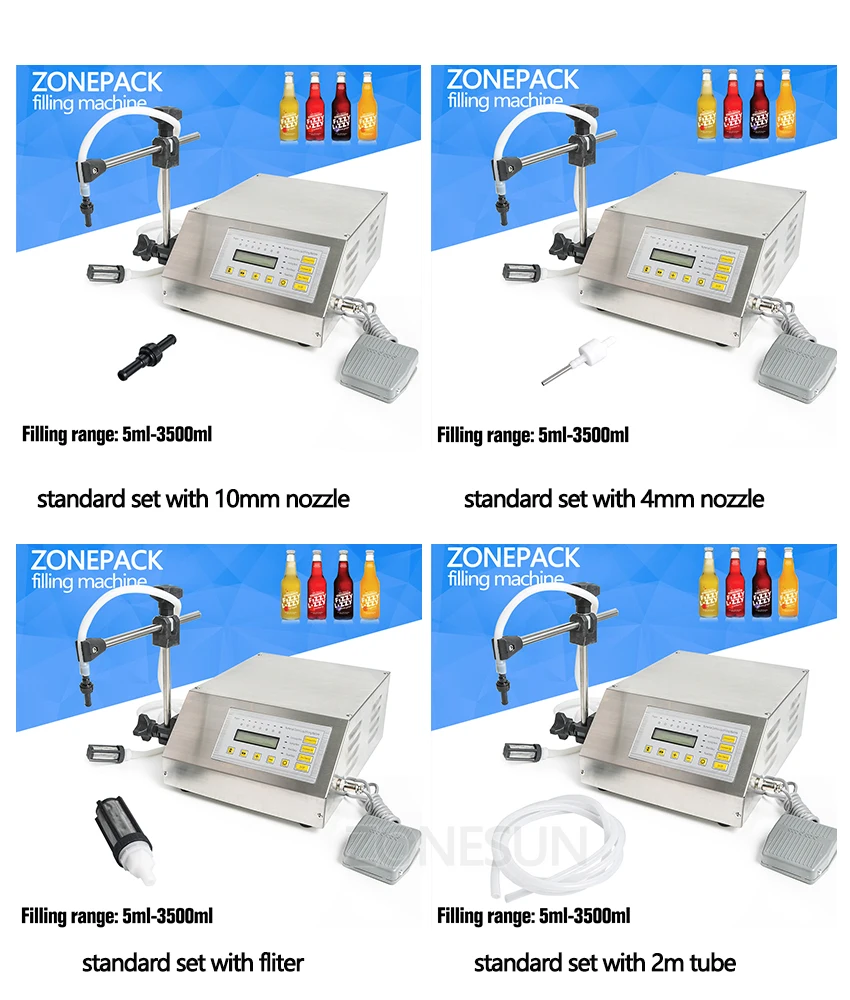

_01_02_03_04_05_06_07Standard Set



1000



  12378





Characteristics



1.Imported single-chip control,high efficiency,low power consumption

2.Automatic counting,control the filling quantity effectively.

3.LCD display,touch screen panel is easy to operate.

4.Filling Accuracy is high,precise volume.

5.Wide voltage use range.

6.Product working performance is stable,long use life.

7.Self-suck function,don\'t need to pour.

8.Pump can stand the acid and alkali.

9.Anti-dripping design

10.Reasonable construction design,stanless steel shelf,meed GMP requirement.









Technical Parameter







Voltage

AC 180V-260V,110V can be customized

Power

30W

Filling Range

5ml-3500ml

Max Flow Rate

3.2L/min

Package Size

 400X380X200 (mm)

Volume Weight

8.5kg

Max Suck Distance

2m

Repeat Error

<0.5%

Anti-dripping Function

Available

Memory Function without Electricity

Available

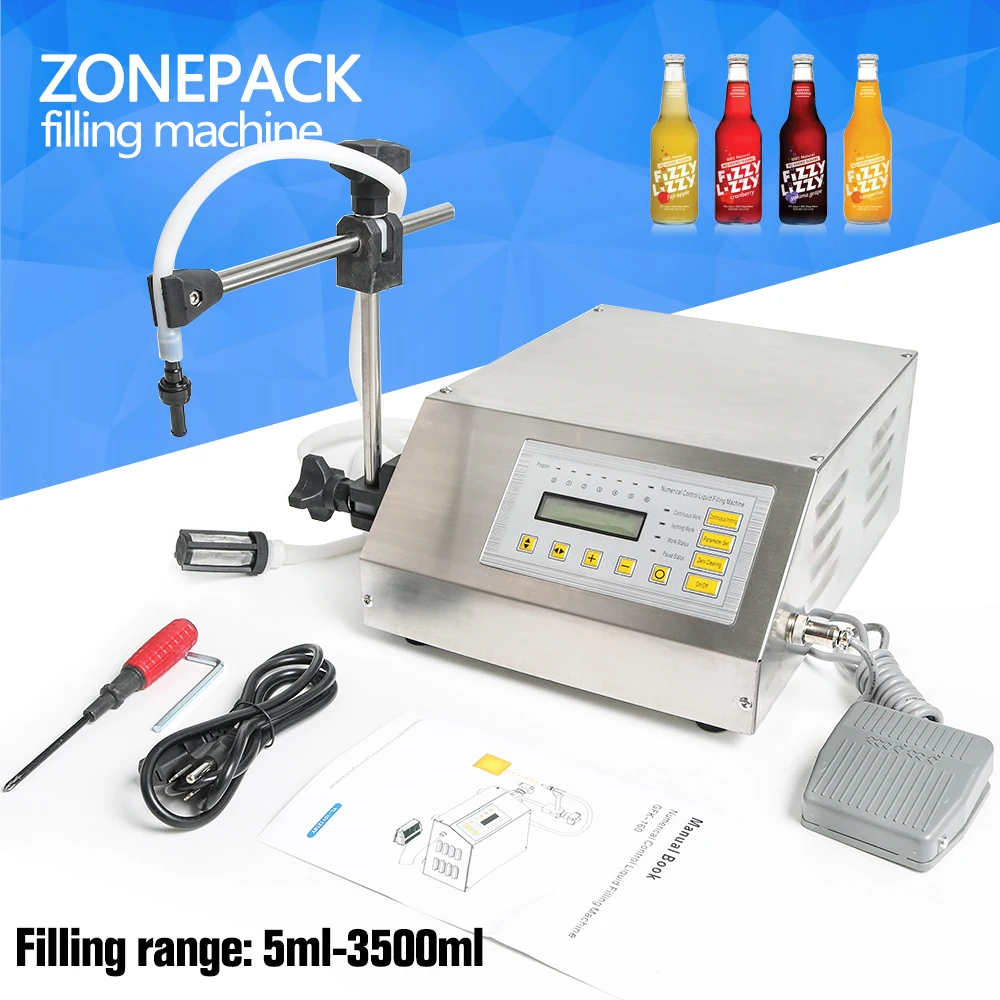

Packing List







1.Power Cord       1pcs

6.Screwdriver                                  1pcs

2.Pedal Switch     1pcs

7.Inner hexagonal wrench             1pcs

3.Filling Stand      1pcs

8.Manual Book                               1pcs

4.Filter                  1pcs

9.Guarantee Receipt                      1pcs

5.Filling Nozzle    1pcs

10.Quality Certificate                     1pcs















filling machine-850_01 (1)filling machine-850_01 (2)filling machine-850_01 (3)filling machine-850_01 (4)filling machine-850_01 (5)filling machine-850_01 (6)filling machine-850_01 (7)filling machine-850_01 (8)filling machine-850_01 (9)filling machine-850_01 (10)filling machine-850_01 (11)filling machine-850_01 (13)filling machine-850_01 (15)f-850_17f-850_18



f1f2f3





We are specialized in filling machine for liquid / paste / powder filling
Using for cream / oil / honey / perfume / beverage etc
Please contact us to get the perfect machine for your business.
